Brief Introduction
Beta 2.5 |

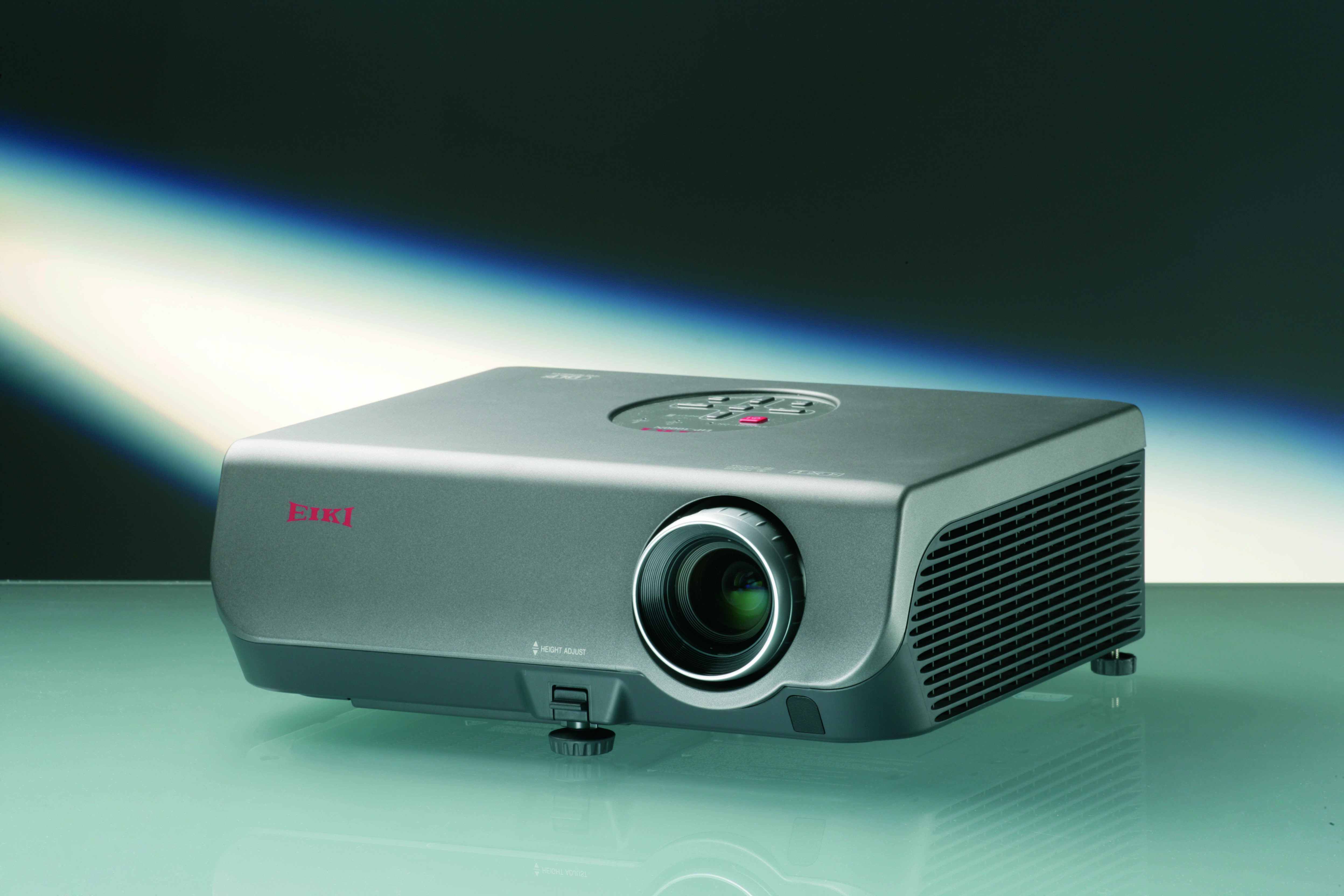

The Eiki model EIP 3000N is a DLP projector with XGA 1024 x 768 resolution and a contrast of 2000:1. An image width of up to 477 cm is possible. However, the picture should be smaller in room light. We recommend max. 318 cm. On the market since 2006, the model is no longer offered by the manufacturer Eiki.
|
| Display Type |
1 x 0,55" 12 Grad DDR DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,5000 min. Lumen |
0,501 min. Lumen |
| Offset |
60,3% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA+ 1400 x 1050 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
300W SHP Lamp
Article Nr.: AH-66271
|
|
| Light Life |
1500 h. 3000 h. in Eco Mode |
| Operating Costs |
|
|
344 - 398 cm
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
| 90 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,15 |
| Objective |
F=2,4-2,6 f=18,7-21,5 mm |
| Throw Ratio |
1,72-1,99:1 show |
| Audio |
2W |
| Connections |
2 x D-sub 15pin in
S-Video in
Cinch Video in
Mini jack in
RS232C
RJ45
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
385 / 308W in Eco Mode |
| Size WxHxD |
315 x 119 x 295 mm (12,4"x4,7"x11,6") 11,06 L/dm³
|
| Operating Noise |
37 / 30 dB in Eco Mode |
|
| Weight |
3,90 kg / 8,6 lbs. |
| Keystone |
Vert.: +/-13° automatisch
|
| Illumination |
95% |
| Frequenz |
H-sync: 15-70 kHz
V-sync: 45-85 Hz
Range max.: 108 MHz |
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Freeze
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
sRGB
Digital image shift
Password protection
PJLink™
Control via web browser
Lan network compatible.
4 segments 3-position speed colour wheel.
|
|
- |
In Comparison
The Eiki EIP 3000N compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
81 |
| Contrast: |
|
1 |
dB: |
|
31 |
| Black level: |
|
94 |
Power cons.: |
|
96 |
| Picture Total Points: | 44 |
Projector Total Points: | 69 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
5163 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
