Brief Introduction
Beta 2.5 |
The Image Pro 8918 LCD projector from Dukane has 3500 Ansi lumens, a contrast of 1000:1 in theater mode and an XGA 1024 x 768 resolution. The projector also offers a lens shift function that makes image adjustment childs play. The projector can illuminate images up to 515 cm wide thanks to its 3500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 343 cm. The projector was launched in 2007 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,79" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3500 / 2800 im Eco Mode |
Screen |
1167 Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off im Theatre Mode |
1000:1 full on/off im Theatre Mode
|
| Black Level |
3,5000 min. Lumen |
1,171 min. Lumen |
| Lens shift |
Vert.: +41% -0% Hori.: +/-10% manuell
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
285W UHB Lamp
Article Nr.: 456-8943
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
300 - 360 cm
|
 |
|
Lux: |
1167 Lux |
|
Room light max.: |
233 Lux |
|
Candela pro m²: |
370 cd/m² |
|
Foot-Lamberts: |
108 fL |
|
 |
| 62 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,7-2,1 f=24,3-29,2 mm |
| Throw Ratio |
1,5-1,8:1 show |
| Audio |
4 x 4W |
| Connections |
1 x DVI M1DA
2 x D-sub 15En in 1 x out
YUV in
S-Video in
Cinch Video in
Cinch Stereo in
Mini Jack in und out
RJ45
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
460W |
| Size WxHxD |
418 x 139 x 319 mm (16,5"x5,5"x12,6") 18,53 L/dm³
|
| Operating Noise |
35 / 28 dB in Eco Mode |
Key: 252 cm
Shift: 62 cm |
Key: 109 cm
Shift: 20 cm |
| Key: 109 cm
Shift: 20 cm |
| |
|
|
| Weight |
7,00 kg / 15,43 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 31,5-106 kHz
V-sync: 56-120 Hz
|
| Foot-Lamberts |
108 fL
/ max. 515 cm screen width |
| Candela m² |
370 cd/m² |
| Features |
 Direkt Power Off
Lens shift Funktion manuell
Freeze
Blank (Black screen button)
Blackboard Modus
User logo
Eco Mode
Kensington Slot
Gamma correction
Dynamic iris
Password protection

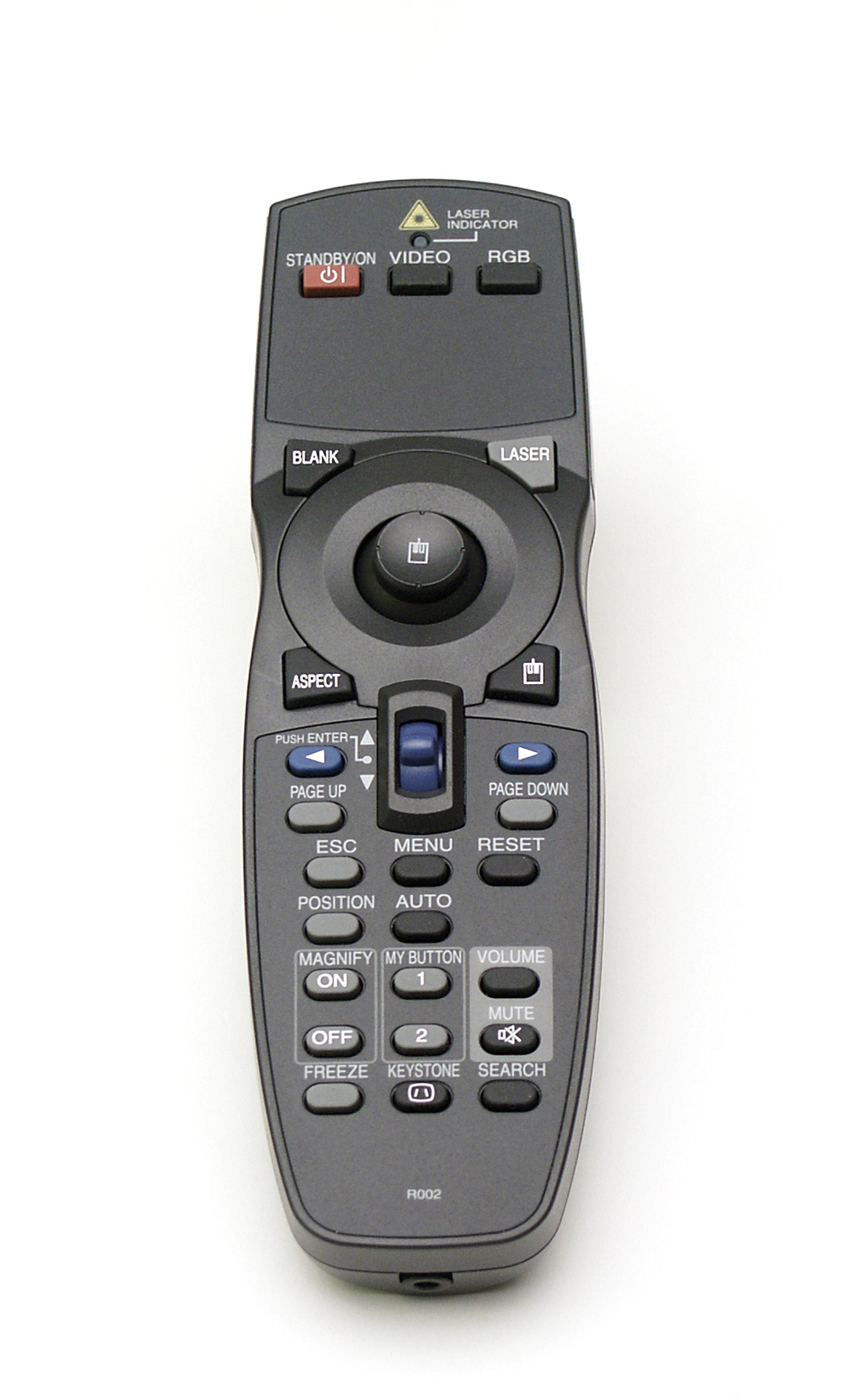

Remote control with laser pointer und mouse control
Control via web browser
Lan network compatible.
Overscan adjustable
De-interlacer with 3:2 pull down..
|
|
- |
In Comparison
The Dukane Image Pro 8918 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
34 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
90 |
Power cons.: |
|
95 |
| Picture Total Points: | 42 |
Projector Total Points: | 97 |
|
| Popularity Top 100 |
|
| Points: |
|
16 |
| Ranking: |
1667 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| UL-604 | 3.9-7.4:1 | 780-1480 m |
41% |
+/-10% |
|
| LL-603 | 2-3.9:1 | 400-780 m |
41% |
+/-10% |
Manual |
| SL-602 | 1.2-2:1 | 240-400 m |
41% |
+/-10% |
Manual |
| FL-601 | 0.8:1 | 160 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2023-08-04
|
