Brief Introduction
Beta 2.5 |
The stationary Dukane ImagePro 8808 LCD projector has 4000 Ansi lumens, a contrast of 800:1 and an XGA 1024 x 768 resolution. The projector also offers an integrated media player for direct playback of files. The integrated lens shift gives freedom when positioning the projector. An image width of up to 551 cm is possible, if the image width is smaller (we recommend max. 367 cm), rooms with residual light are also no problem. The projector was launched in 2008 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,8" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
4000 / 3300 im Eco Mode |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
800:1 full on/off |
800:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,673 min. Lumen |
| Lens shift |
Vert.: +50% -0% Hori.: +/-10% manuell
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Media player formats: JPEG, BMP, PNG, GIF |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
280 / 252W NSH Lamp
Article Nr.: 456-8806
|
|
| Light Life |
2000 h. 3000 h. inEco Mode |
| Operating Costs |
-
|
|
300 - 400 cm
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,33 |
| Objective |
F=1,7-2,2 f=24,4-32,5 mm |
| Throw Ratio |
1,5-2,0:1 show |
| Audio |
2 x 5W Stereo |

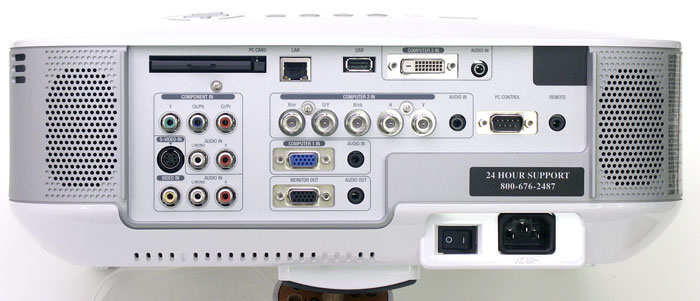

| Connections |
DVI-D mit HDCP in
D-sub 15pin in und out
5 x BNC RGBHV in
YUV in
S-Video in
Cinch Video in
2 x Cinch Stereo in 1 x out
RJ45in
PCMCIA Slot Type-2
RS232C D-sub15pin
USB Typ A
Mini Jack in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
435 / 365W in Eco Mode |
| Size WxHxD |
399 x 150 x 358 mm (15,7"x5,9"x14,1") 21,43 L/dm³
|
| Operating Noise |
35 / 30 dB in Eco Mode |
Key: 252 cm
Shift: 75 cm |
Key: 210 cm
Shift: 20 cm |
| Key: 210 cm
Shift: 20 cm |
| |
|
|
| Weight |
7,30 kg / 16,09 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-35°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 48-120 Hz
|
| Foot-Lamberts |
124 fL
/ max. 551 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
 Direkt Power Off
Lens shift Funktion manuell
Integrated Mediaplayer
Freeze
Blackboard Modus
Eco Mode
Kensington Slot
sRGB
Gamma correction
Warping
Password protection
Remote control with laser pointer
PJLink™
Control via web browser
Optional Wi-Fi network compatible.
Lan network compatible.
Overscan adjustable
Prospekt englisch ist fehlerhaft.
|
|
- |
In Comparison
The Dukane ImagePro 8808 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
39 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
85 |
Power cons.: |
|
95 |
| Picture Total Points: | 42 |
Projector Total Points: | 97 |
|
| Popularity Top 100 |
|
| Points: |
|
21 |
| Ranking: |
1291 (From: 2514) |
|
|
|
| Please note |
English brochure is incorrect.
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| NP05ZL | 4.62-7.02:1 | 924-1404 m |
50% |
+/-10% |
Manual |
| NP04ZL | 2.98-4.77:1 | 596-954 m |
50% |
+/-10% |
Manual |
| NP03ZL | 1.94-3.07:1 | 388-614 m |
50% |
+/-10% |
Manual |
| NP02ZL | 1.18-1.54:1 | 236-308 m |
50% |
+/-10% |
Manual |
| NP01FL | 0.8:1 | 160 m |
0.0% Fix |
+/-10% |
No Zoom |
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
Product Sheet english HC (10.46 MB)
|
Dukane Website
