Brief Introduction
Beta 2.5 |
The ImagePro 8784 LCD has 2000 Ansi lumens, a contrast of 500:1 and an XGA 1024 x 768 resolution. The projector can illuminate an image width of up to 389 cm thanks to its 2000 Ansi lumens. In room light, however, the image width should ideally be less than 259 cm. The model was built by Dukane in 2008 and is no longer current.
|
| Display Type |
3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2000 / 1600 im Eco Mode |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
4,0000 min. Lumen |
1,342 min. Lumen |
| Offset |
35,7% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
160W UHB Lamp
Article Nr.: 456-8770
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
256 - 308 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
| 54 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,8-1,9 f=16,4-19,7 mm |
| Throw Ratio |
1,28-1,54:1 show |
| Audio |
1 x 1W |

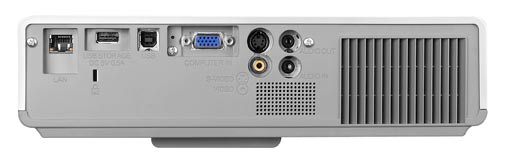

| Connections |
D-sub 15 pin in
S-Video in
Cinch Video in
Mini Jack in
USB in
RJ45
SD Slot |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W |
| Size WxHxD |
274 x 65 x 205 mm (10,8"x2,6"x8,1") 3,65 L/dm³
|
| Operating Noise |
35 / 29 dB in Eco Mode |
|
| Weight |
1,90 kg / 4,19 lbs. |
| Keystone |
Vert.: +/-30° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Gamma correction
Password protection
Remote control with mouse control
Wi-Fi network compatible.
Lan network compatible.
De-interlacer with 3:2 pull down..
|
|
- |
In Comparison
The Dukane ImagePro 8784 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
36 |
| Black level: |
|
85 |
Power cons.: |
|
98 |
| Picture Total Points: | 36 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
4 |
| Ranking: |
7103 (From: 7662) |
|
|
|
|
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2023-08-04
|
