Brief Introduction
Beta 2.5 |

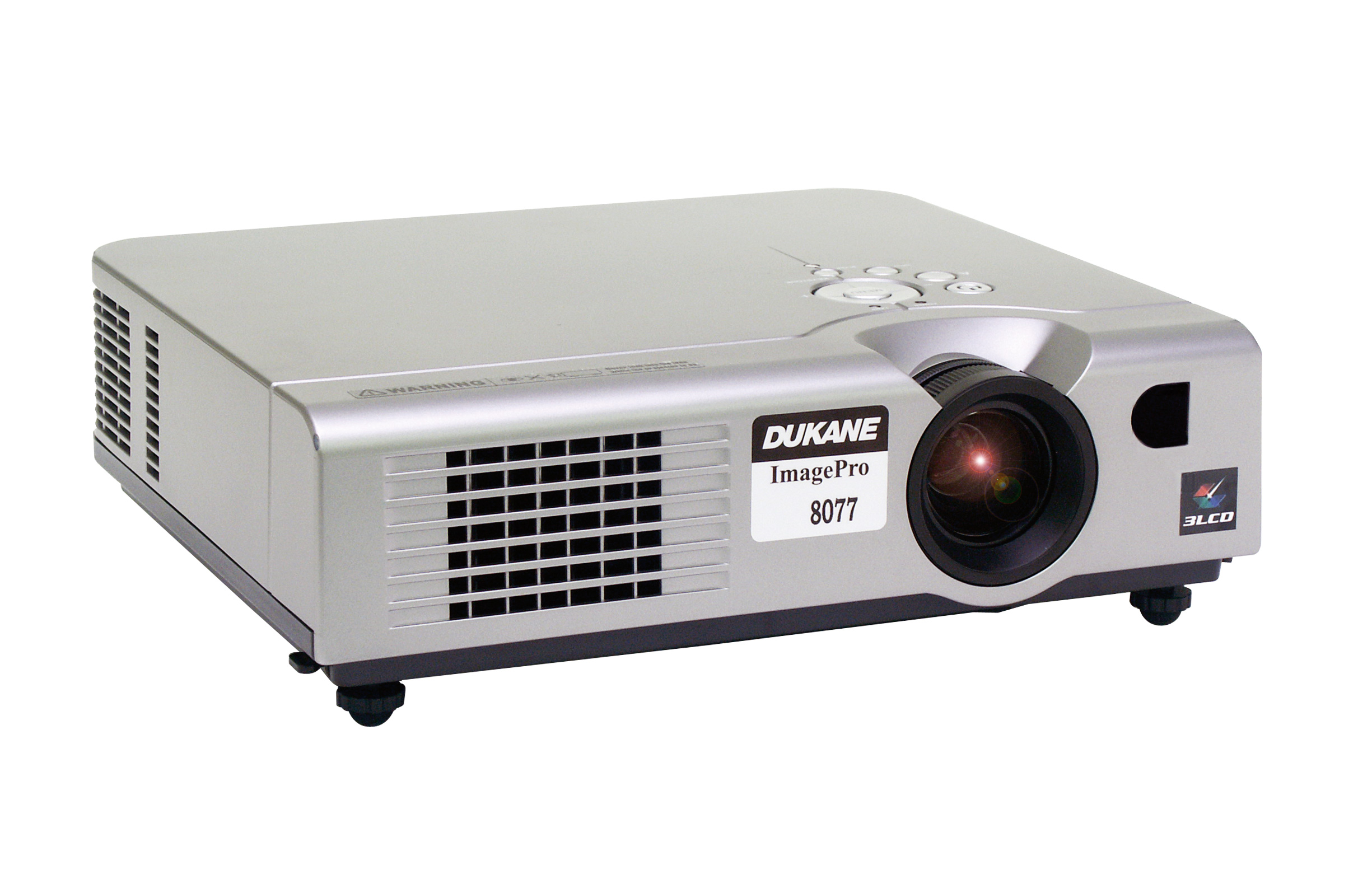

The ImagePro 8077 LCD projector from Dukane has 2000 Ansi lumens, a contrast of 400:1 and an SVGA 800 x 600 resolution. 2000 Ansi lumens ensure that a picture width of 389 cm is also possible. However, if room light is available, the picture should be max. 259 cm wide. It was launched in 2006 and is no longer offered by the manufacturer Dukane.
|
| Display Type |
3 x 0,7" LCD TFT Panel mit MLA
SVGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2000 / 1600 im Eco Mode |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,68 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
180W Lamp
Article Nr.: 456-8077
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
358 - 428 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,17 |
| Objective |
F=1,8-2,1 |
| Throw Ratio |
1,79-2,14:1 show |
| Audio |
1 x 1W Mono |
| Connections |
2 x D-sub 15pin in 1 x out
S-Video in
Cinch Video in
USB in
RS232C
Mini Jack in und out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250 / 232W in Eco Mode |
| Size WxHxD |
304,8 x 101,6 x 266,7 mm (12"x4"x10,5") 8,17 L/dm³
|
| Operating Noise |
37 / 33 dB in Eco Mode |
|
| Weight |
2,72 kg / 6 lbs. |
| Keystone |
Vert.: +/-30° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 15-69 kHz
V-sync: 43-85 Hz
|
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Freeze
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
|
|
- |
In Comparison
The Dukane ImagePro 8077 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
31 |
| Black level: |
|
81 |
Power cons.: |
|
98 |
| Picture Total Points: | 35 |
Projector Total Points: | 72 |
|
| Popularity Top 100 |
|
| Points: |
|
4 |
| Ranking: |
6758 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC

|
Dukane Website
