Brief Introduction
Beta 2.5 |

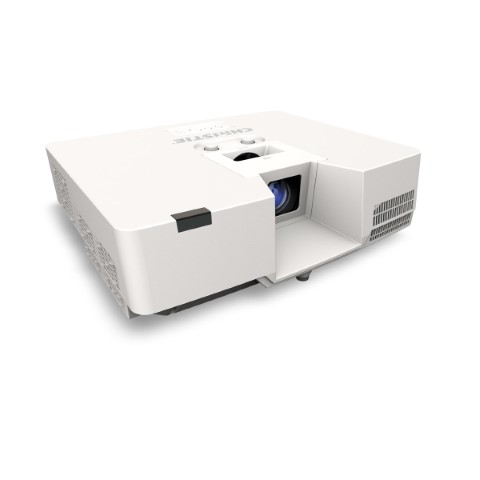

The Christie LWU530-APS laser LCD projector has 5000 Ansi lumens, a contrast of 3000000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer Christie states a service life of 20000 hours, which is over 13.7 years if enjoyed for four hours a day. The projector also offers a lens shift function that makes image adjustment childs play. An image width of up to 718 cm is possible as the projector has 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 479 cm. Furthermore, the projector can play 1080P without any problems and even has the option of projecting HD 1080P Blu-rays onto the ceiling using 360° projection. This model is no longer offered by Christie.
|
| Display Type |
3 x 0,64" LCD TFT Panel
WUXGA 16/9 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
3000000:1 |
3000000:1
|
| Black Level |
0,0017 min. Lumen |
0,001 min. Lumen |
| Lens shift |
Vert.: +56,5% -0% Hori.: +/-4,6%
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
280 - 480 cm
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 64 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,17 |
| Objective |
- |
| Throw Ratio |
1,4-2,4:1 show |
| Audio |
1 x 16W Mono |
| Connections |
2 x HDMI in
D-sub 15pin 2 x in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
HDBaseT
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
360W |
| Size WxHxD |
506 x 138 x 424 mm (19,9"x5,4"x16,7") 29,61 L/dm³
|
| Operating Noise |
37 / 28 dB in Eco Mode |
Shift: 63 cm
|
Shift: 8 cm
|
|
Shift: 8 cm
|
| |
|
|
| Weight |
8,20 kg / 18,08 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 31,5-106 kHz
V-sync: 56-120 Hz
|
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Eco Mode
Kensington Slot
360° installable
Picture-in-Picture
Optional Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
AMX
Extron
Dicom Simulation Mode
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Christie LWU530-APS compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
99 |
| Contrast: |
|
60 |
dB: |
|
94 |
| Black level: |
|
100 |
Power cons.: |
|
96 |
| Picture Total Points: | 70 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
14 |
| Ranking: |
1803 (From: 2514) |
|
|
|
|
|
| Status |
2019 Discontinued (EOL) // Last update of the data: 2023-08-04
