Brief Introduction
Beta 2.5 |
The Casio model XJ-L8300HN is a DLP laser projector with 4KESHIFT 2716 x 1528 4,150,048 pixel resolution and a contrast of 20000:1. The manufacturer Casio specifies a service life of 20000 hours, which converts to over 13.7 years at 4 hours. With the lens shift function, the projector can be positioned very freely. An image width of up to 718 cm is possible, if the image width is smaller (we recommend max. 479 cm), rooms with residual light are also no problem. The model is also Full HD 1080P and 4K compatible. The model built in 2017 is no longer offered by Casio.
|
| Display Type |
1 x 0,66" DLP Chip
4KESH 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2500 min. Lumen |
0,111 min. Lumen |
| Lens shift |
Vert.: +/-60% Hori.: +/-25%
|
| Resolution |
4KESHIFT 2716 x 1528 4.150.048 Pixel
(4K2K) 3840 x 2160 mit E-Shift |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
Nein |

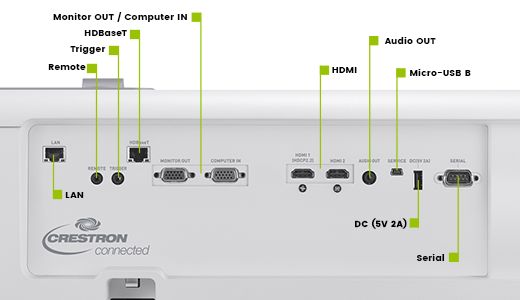

| Connections |
HDMI 1: HDMI Type 2.0 × 1 (HDCP2.2)
HDMI 2: HDMI Type 1.4 × 1 (HDCP1.3)
D-sub 15pin in und out
RS232C Din 9 pin in
Mini Jack Audio out
USB Typ A,B
RJ45 in
HDBaseT in
12V Trigger out |
| Ceiling Mounting |
Yes, is possible. |
| Power |
600W |
| Size WxHxD |
471 x 206 x 565 mm (18,5"x8,1"x22,2") 54,82 L/dm³
|
| Operating Noise |
- |
Shift: 68 cm
|
Shift: 50 cm
|
|
Shift: 50 cm
|
| |
|
|
| Weight |
19,80 kg / 43,65 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Lan network compatible.
Crestron®-Software compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Casio XJ-L8300HN compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
93 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
99 |
Power cons.: |
|
93 |
| Picture Total Points: | 50 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
12 |
| Ranking: |
2005 (From: 2514) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2025-03-03
Created: 2017-02-07 16:30:38
|
| Data |
 Product Sheet english
Product Sheet english
Product Sheet english HC
Press release english

|
Casio Website
