Brief Introduction
Beta 2.5 |

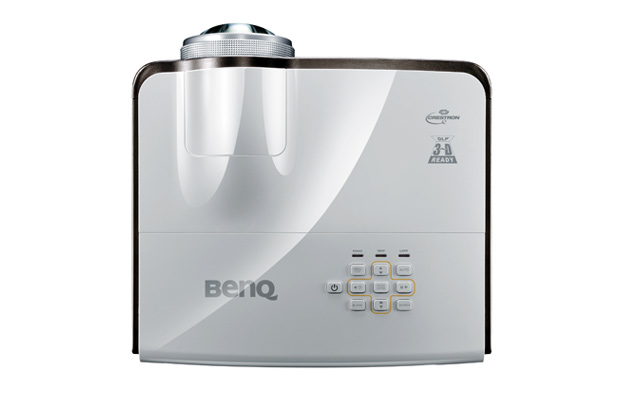

The Benq model MW811ST is a DLP projector with WXGA 1280 x 800 resolution and a contrast of 4600:1. The lamp life is up to 4000 hours, which is over 5.5 years with a daily viewing time of 2 hours. Including an integrated media player with which files can be played directly. As it is a short-throw projector, the projector can be placed very close to the wall. For a 2 m wide picture, the projector needs to be just 100 cm away from the screen. The projector can also play 1080P without any problems. The projector was launched in 2010 and is no longer sold by the manufacturer, but is still a very popular projector.
|
| Display Type |
1 x DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2600 |
Screen |
1040 Lux (200 cm Screen width) |
| Contrast |
4600:1 full on/off |
4600:1 full on/off
|
| Black Level |
0,5652 min. Lumen |
0,226 min. Lumen |
| Offset |
-
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: JPEG(JPEG) • PNG • TIFF
BMP • GIF |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
210W Lamp
Article Nr.: 5J.J3K05.001
|
|
| Light Life |
4000 h. 5000 h. in Eco Mode |
| Operating Costs |
-
|
|
100 cm (no Zoom)
|
 |
|
Lux: |
1040 Lux |
|
Room light max.: |
208 Lux |
|
Candela pro m²: |
332 cd/m² |
|
Foot-Lamberts: |
97 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,6 f=6,9mm |
| Throw Ratio |
0,5:1 |
| Audio |
2 x 10W |
| Connections |
2 x D-sub 15 pin in 1 x out
S-Video in
Cinch Video in
Mini Jack Audio in und out
RJ45 in
USB Typ B in
12V Tigger out
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
290W |
| Size WxHxD |
290 x 128 x 252 mm (11,4"x5"x9,9") 9,35 L/dm³
|
| Operating Noise |
35 / 30 dB in Eco Mode |
|
| Weight |
3,40 kg / 7,5 lbs. |
| Keystone |
Vert.: +/-30° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 31-99 kHz
V-sync: 48-120 Hz
|
| Foot-Lamberts |
97 fL
/ max. 518 cm screen width |
| Candela m² |
332 cd/m² |
| Features |
 Full HD 1080P compatible
Direkt Power Off
Integrated Mediaplayer
Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
sRGB
Password protection
BrilliantColor™
Remote control with laser pointer
PJLink™
Control via web browser
Lan network compatible.
Short-throw projector
Crestron®-Software compatible.
Digital Zoom (x2)
|
|
- |
In Comparison
The Benq MW811ST compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
30 |
Weight: |
|
94 |
| Contrast: |
|
1 |
dB: |
|
35 |
| Black level: |
|
99 |
Power cons.: |
|
94 |
| Picture Total Points: | 43 |
Projector Total Points: | 74 |
|
| Popularity Top 100 |
|
| Points: |
|
14 |
| Ranking: |
565 (From: 974) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
