Brief Introduction
Beta 2.5 |

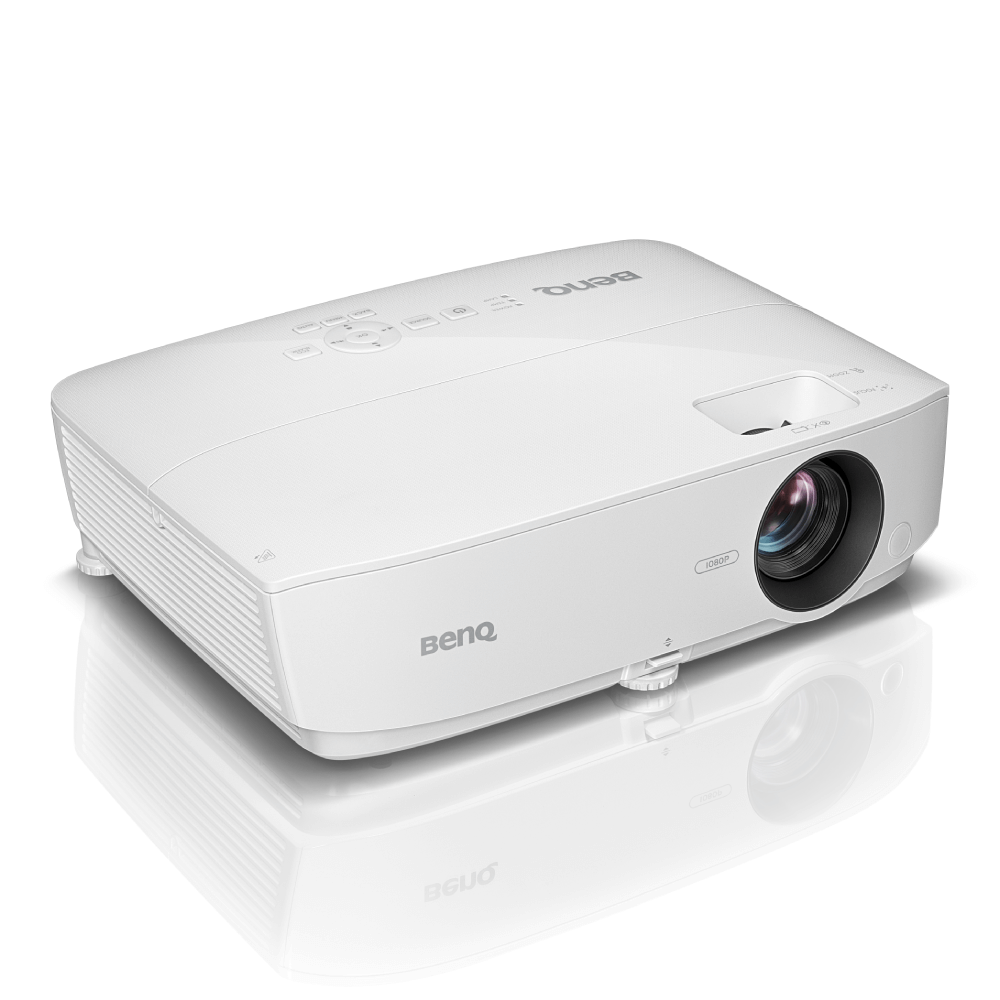

The Benq MW536 3D DLP projector has 4000 Ansi lumens, a contrast of 20000:1 and a WXGA 1280 x 800 resolution. The lamp has a service life of up to 5500 hours, which is over 7.5 years if enjoyed for two hours a day. A picture width of up to 643 cm is possible, if the picture width is smaller (we recommend max. 429 cm), rooms with residual light are also no problem. It is also Full HD 1080P compatible.
|
| Display Type |
1 x 0,55" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2000 min. Lumen |
0,08 min. Lumen |
| Offset |
53% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p |
| 3D Compatibility |
Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
260W Lamp
Article Nr.: 5J.JN605.001
|
|
| Light Life |
5500 h. / 7000 h. in Eco Mode |
| Operating Costs |
|
|
393 - 471 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 66 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,42-2,62 f=22-25,79 mm |
| Throw Ratio |
1,965-2,356:1 show |
| Audio |
1 x 2W |

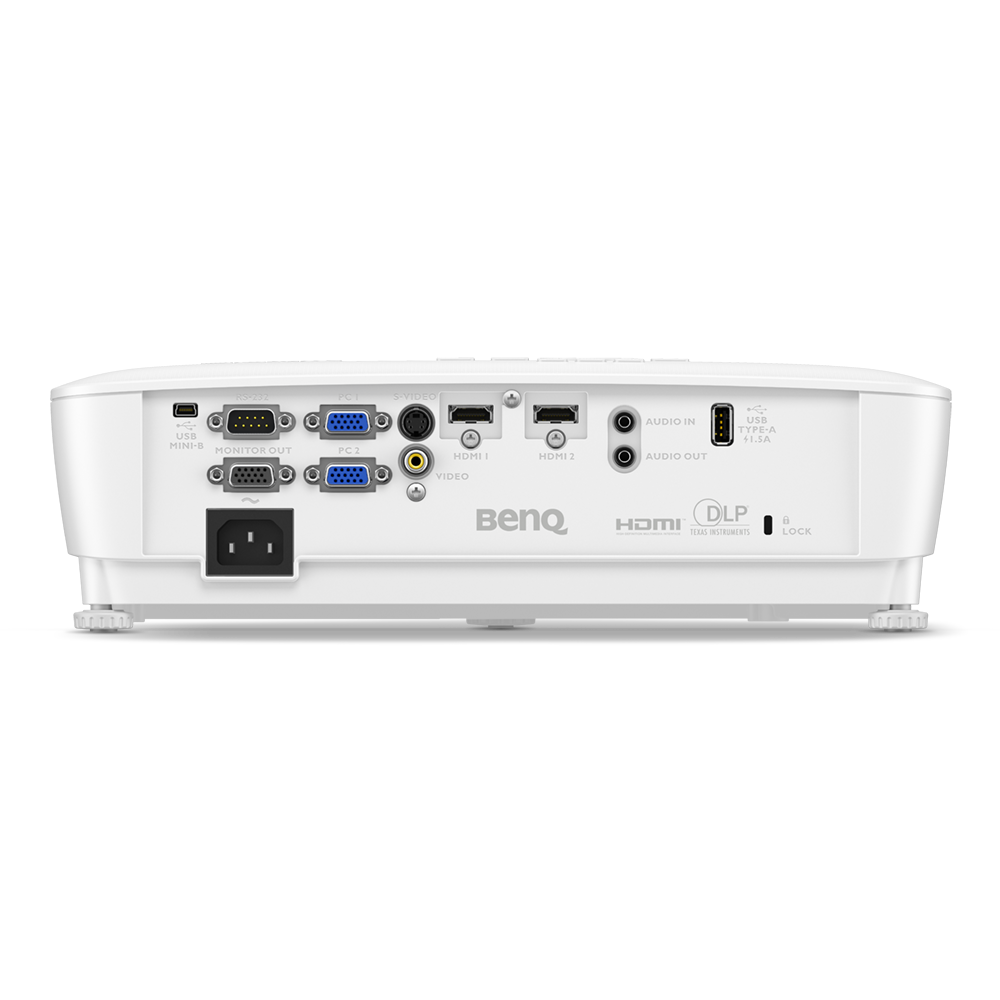

| Connections |
2 x HDMI in
D-sub 15pin 2x in und out
Cinch Video in
S-Video in
Mini Jack Audio in und out
USB
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
260W / 190W in Eco Mode |
| Size WxHxD |
332,4 x 98,9 x 239,5 mm (13,1"x3,9"x9,4") 7,78 L/dm³
|
| Operating Noise |
32 / 29 dB in Eco Mode |
|
| Weight |
2,60 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40° automatisch
|
| Illumination |
- |
| Frequenz |
H-sync: 15-102 kHz
V-sync: 23-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 643 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Full HD 1080P compatible
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Optional Wi-Fi network compatible.
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Benq MW536 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
56 |
Weight: |
|
83 |
| Contrast: |
|
1 |
dB: |
|
74 |
| Black level: |
|
98 |
Power cons.: |
|
56 |
| Picture Total Points: | 52 |
Projector Total Points: | 71 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3573 (From: 7662) |
|
|
|
|
|
| Status |
2020 Discontinued (EOL) // Last update of the data: 2025-09-09
