Brief Introduction
Beta 2.5 |
A brief introduction to the Acer P1355W. The DLP projector has a WXGA 1280 x 800 resolution and a contrast of 20000:1. The lamp life is specified by the manufacturer as 15000 hours, which converts to over 20.5 years at 2 hours per day. A picture width of up to 643 cm is possible, if the picture width is smaller (we recommend max. 429 cm), rooms with residual light are also no problem. With the HDMI MHL port, the smartphone image can be transmitted to the projector in Full HD at 60 Hz by screen mirroring and the smartphone is charged at the same time. It is also Full HD 1080P and 3D compatible.
|
| Display Type |
1 x 0,65" DLP Chip
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
4000 / 3200 im Eco Mode |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,2000 min. Lumen |
0,08 min. Lumen |
| Offset |
50% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
210W Philips UHP Lamp
Article Nr.: UC.JSA11.001
|
|
| Light Life |
5000 h. 15000 h. in Eco Mode |
| Operating Costs |
|
|
242 - 314 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 63 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
F=2,59-2,87 f=16,88-21,88 mm |
| Throw Ratio |
1,21-1,57:1 show |
| Audio |
1 x 10W |

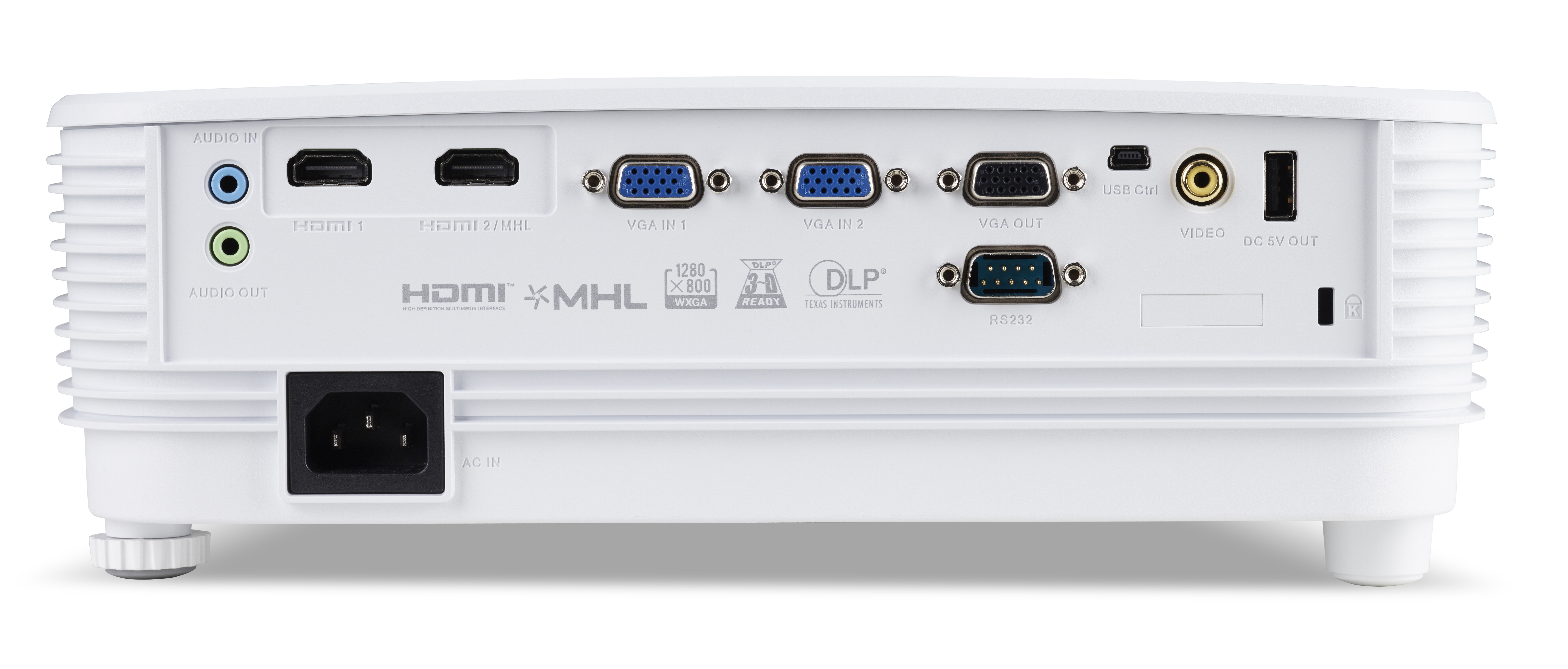

| Connections |
HDMI 1.4a in
HDMI mit MHL
D-sub 15pin in und out
Cinch Video in
Mini Jack Audio in und out
USB Typ Ain
RS232C Din 9 pin in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
260W |
| Size WxHxD |
299,50 x 105,10 x 220 mm (11,8"x4,1"x8,7") 6,91 L/dm³
|
| Operating Noise |
31 / 27 dB in Eco Mode |
|
| Weight |
2,40 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40° automatisch
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 643 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Blackboard Modus
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Password protection
Optional Wi-Fi network compatible.
|
|
über HDMI MHL |
In Comparison
The Acer P1355W compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
56 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
76 |
| Black level: |
|
98 |
Power cons.: |
|
56 |
| Picture Total Points: | 52 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
9 |
| Ranking: |
1923 (From: 7662) |
|
|
|
|
|
| Status |
2020 Discontinued (EOL) // Last update of the data: 2025-09-09
