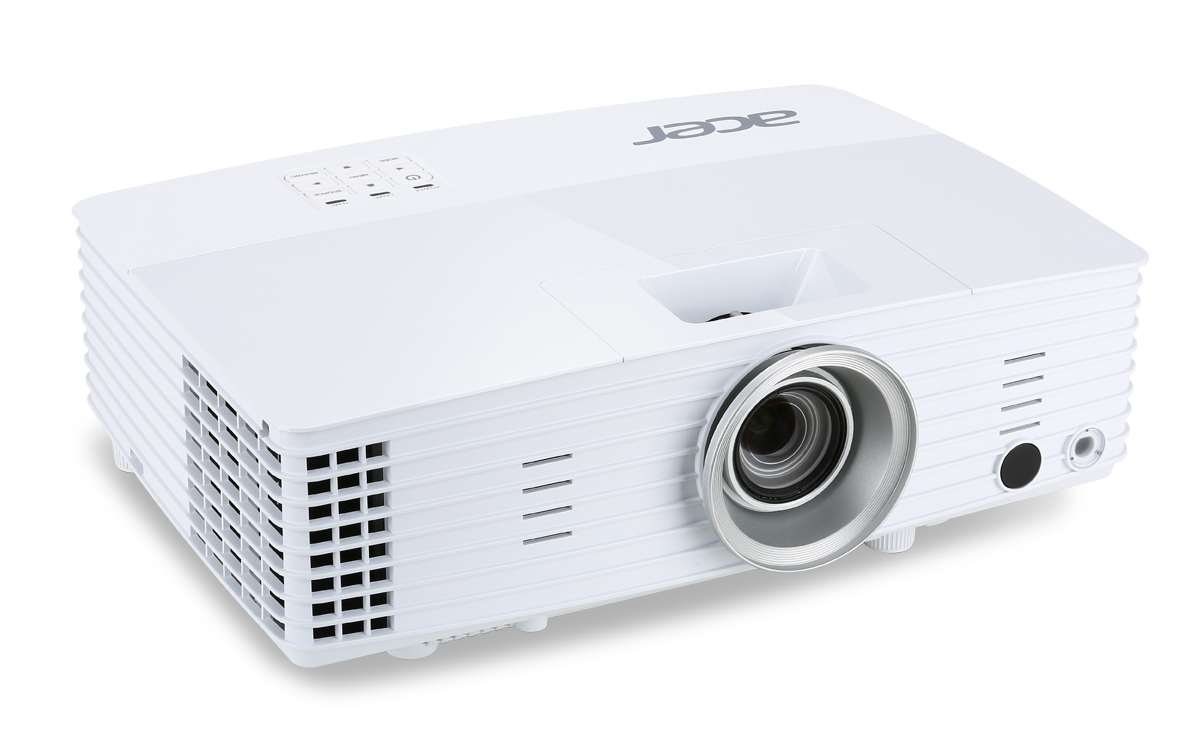

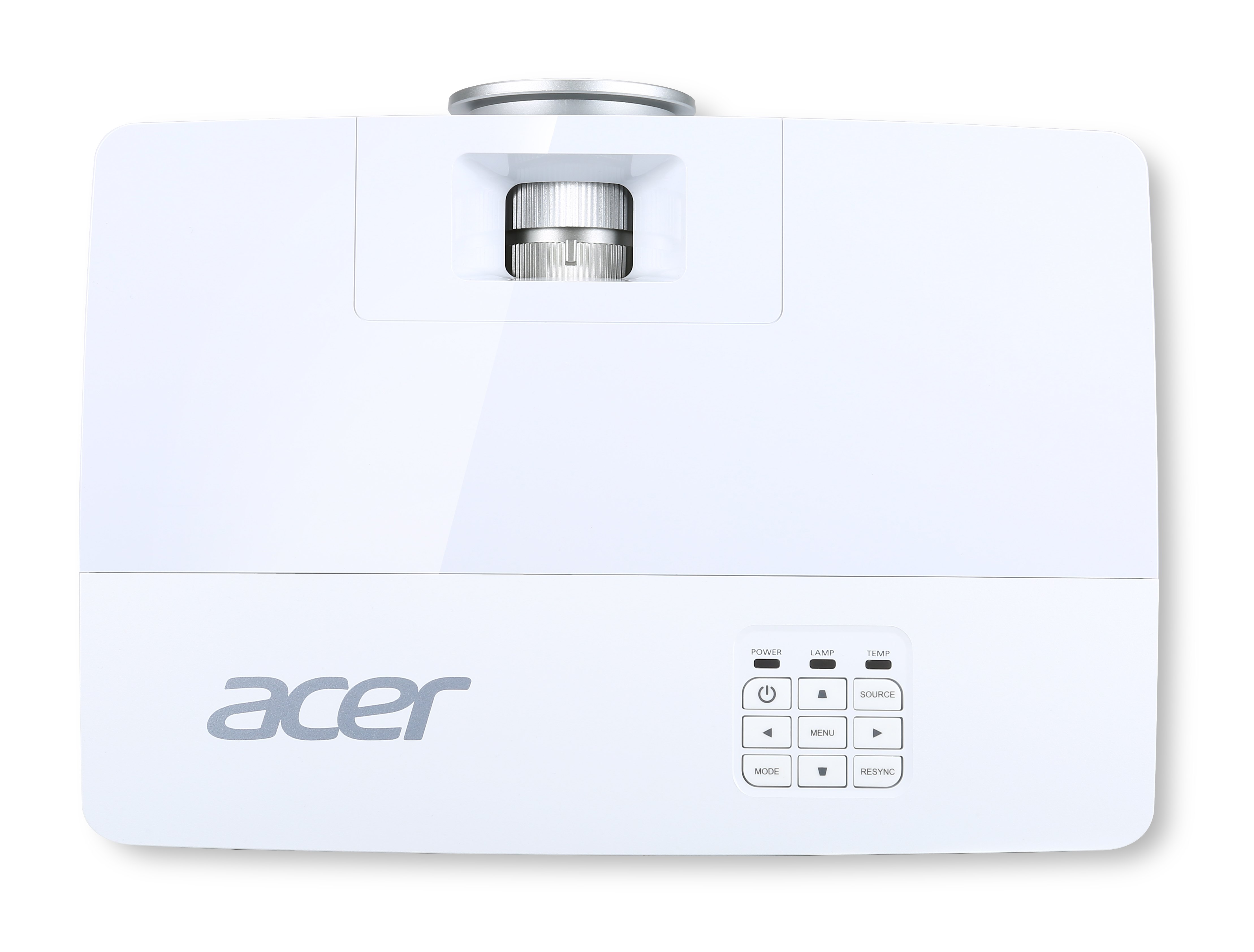

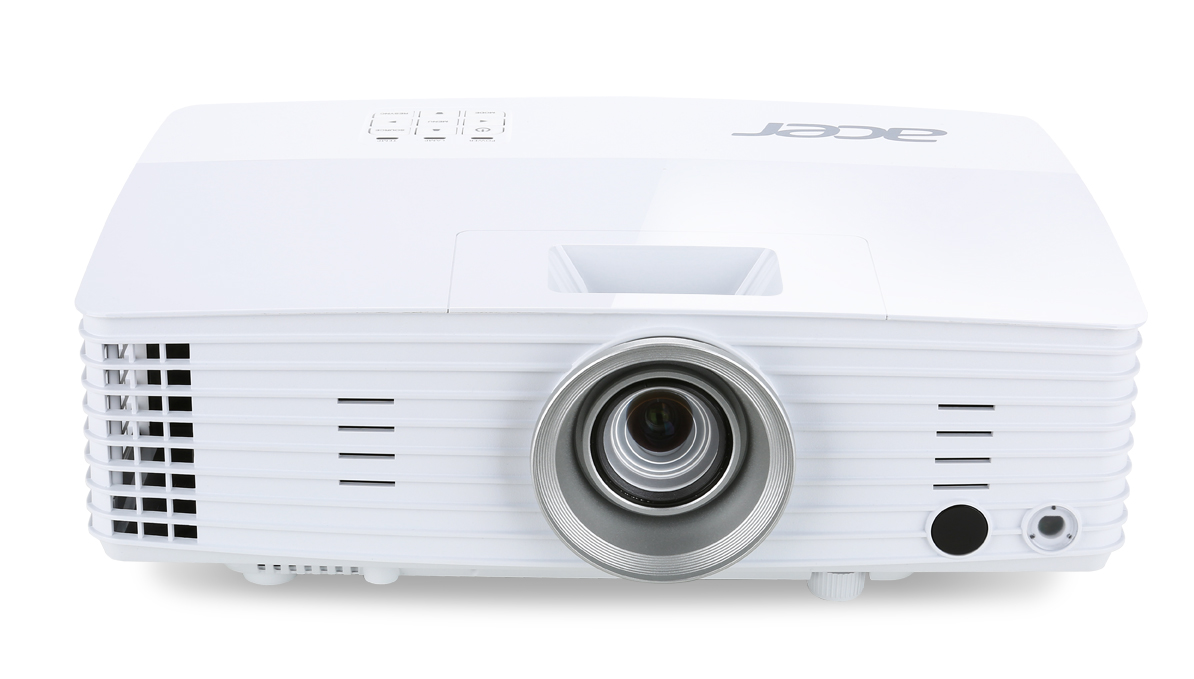

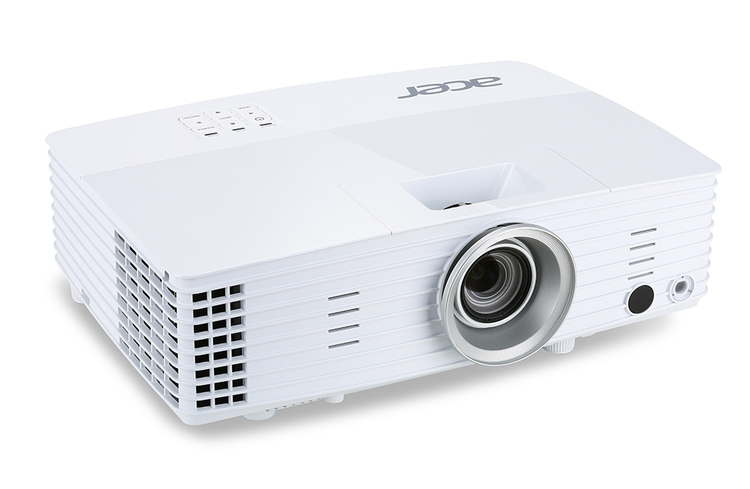

The Acer model H6518BD old is a DLP projector with HDTV 1920 x 1080 resolution and a contrast of 20000:1. The built-in ambient light sensor detects the ambient light in the room and automatically optimizes the image. 575 cm image width, the projector will be able to illuminate well. However, if there is room light, the image width should ideally not exceed 383 cm. A smartphone with an MHL connection can be connected directly to the MHL/HDMI port and transmit a 1080p / 60 Hz image mirroring (screen mirroring) while the smartphone is being charged at the same time. Playing 1080P and 3D is also no problem for the projector. It was launched on the market in 2015 and is no longer offered by the manufacturer Acer.
|
| Display Type |
1 x 0,65" DC3 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3200 / 2560 |
Screen |
1422 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,1600 min. Lumen |
0,071 min. Lumen |
| Offset |
55% show
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
WUXGA 1920 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter |
| Application |
Homecinema | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |

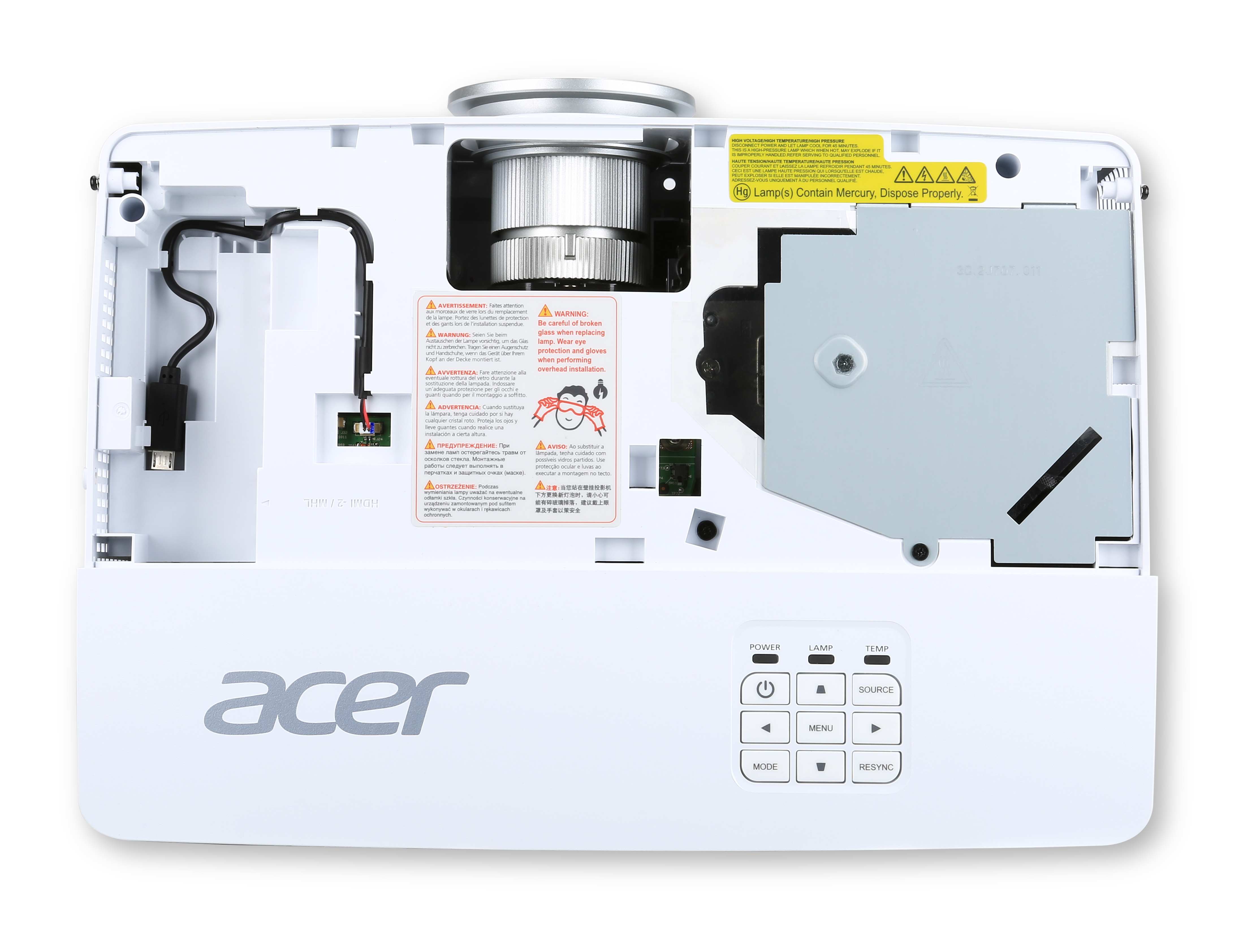

| Light Source |
220W UHP Lamp
Article Nr.: MC.JM911.001
|
|
| Light Life |
3500 h. 6500 h. in Eco Mode |
| Operating Costs |
|
|
230 - 300 cm
|
 |
|
Lux: |
1422 Lux |
|
Room light max.: |
284 Lux |
|
Candela pro m²: |
452 cd/m² |
|
Foot-Lamberts: |
132 fL |
|
 |
| 62 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,3 |
| Objective |
F=2,59-2,87 f=16,88-21,88 mm |
| Throw Ratio |
1,15-1,50:1 show |
| Audio |
1 x 10W |

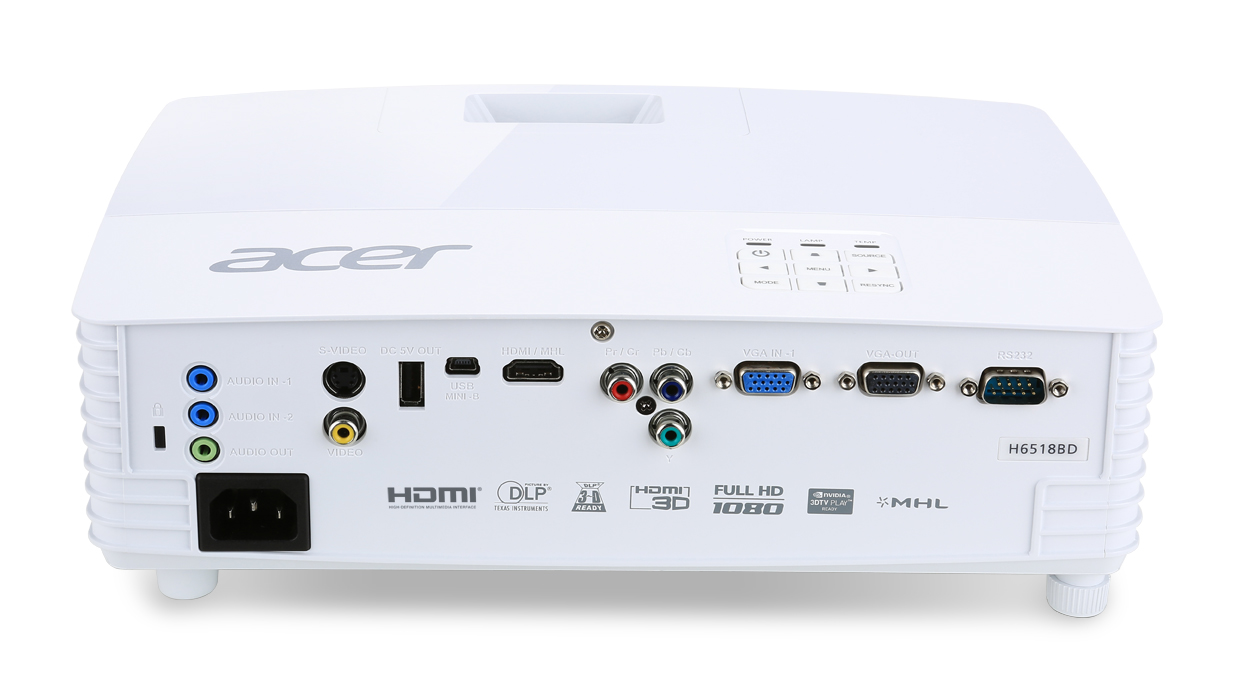

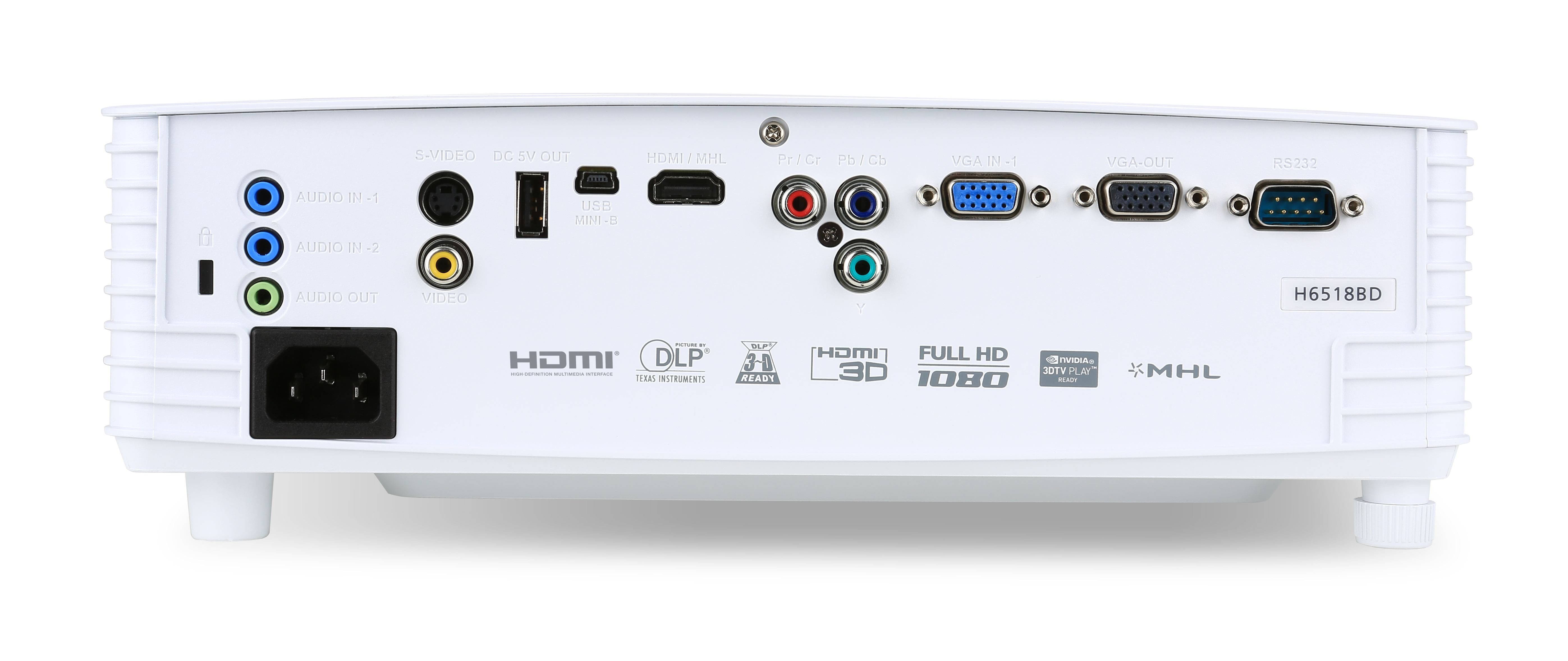

| Connections |
2 x HDMI mit 1 x mit MHL in
D-Sub 15 pin in und out
YUV in
S-Video in
Cinch Video in
USB Typ A,B
Mini Jack Audio in und out
RS232C
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
282W |
| Size WxHxD |
308 x 86 x 211 mm (12,1"x3,4"x8,3") 5,59 L/dm³
|
| Operating Noise |
31 / 26 dB in Eco Mode |
|
| Weight |
2,40 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
H-sync: 14-100 kHz
V-sync: 24-120 Hz
|
| Foot-Lamberts |
132 fL
/ max. 575 cm screen width |
| Candela m² |
452 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
BrilliantColor™
Ambient Light Sensor.
Digital Zoom 2x
Bluetooth Audio
6 Segment Colour Wheel
|
|
über HDMI MHL |
